S112E
    Publish time 2015-03-10 15:51

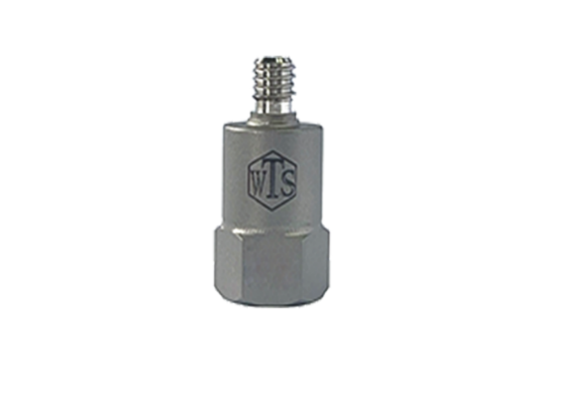

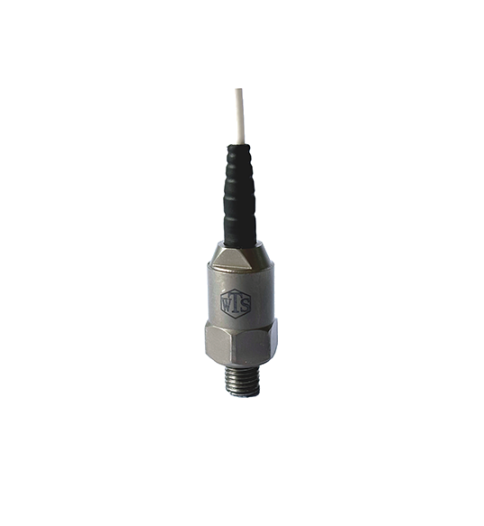

S112E
WTS  ModelS112E.05S112ES112E.2
Sensitivity1mV/g0.5 mV/g0.25 mV/g
Measurement Range±5,000 g pk±10,000 g pk±20,000 g pk
Frequency Range (±5%）2 - 15k Hz2 - 15k Hz2 - 15k Hz
Frequency Range (±10%)1 - 20k Hz1 - 20k Hz1 - 20k Hz
Resonant Frequency>75K>75K>75K
Non-Linearity≤1%≤1%≤1%
Transverse Sensitivity≤5%≤5%≤5%
Operating Temp. Range-55 - +120 ℃-55 - +120 ℃-55 - +120 ℃
Sensing Element/GeometryCeramics/ShearCeramics/ShearCeramics/Shear
Output Tyleintegrated cableintegrated cableintegrated cable
Electrical Isolation---
Compliance Voltage18~28 VDC18~28 VDC18~28 VDC
Current range2~10 mA2~10 mA2~10 mA
Output Bias Voltage11 V±1.5 V11 V±1.5 V11 V±1.5 V
Output Impedance≤100 Ω≤100 Ω≤100 Ω
Case MaterialTitaniumTitaniumTitanium
Case sealingLaser weldingLaser weldingLaser welding
Weight6.5g6.5g6.5g
SizeΦ11X16mm                             Φ11X16mm                             Φ11X16mm
Mounting M6×0.75 boltM6×0.75  boltM6×0.75  bolt
