U323E
    Publish time 2023-08-07 11:22

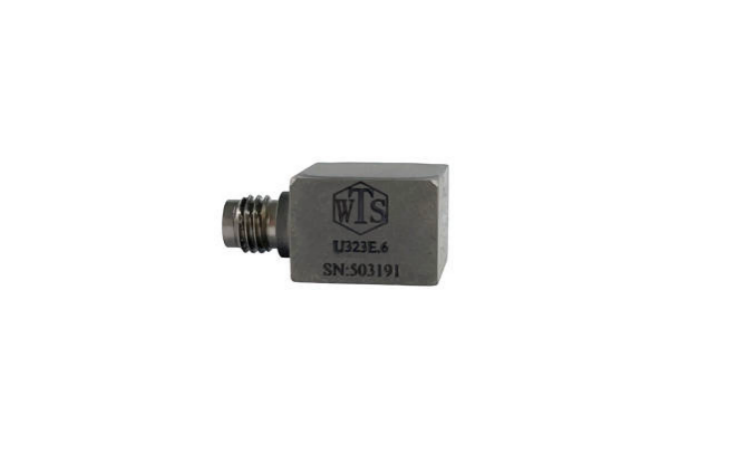

U323E
WTS  Model U323EU323E.5U323E.6
Sensitivity10 mV/g50 mV/g100 mV/g
Measurement Range±500 g pk±100 g pk±50 g pk
Frequency Range (±5%）1~8k Hz1~8k Hz1~8k Hz
Frequency Range (±10%)0.5~9k Hz0.5~9k Hz0.5~9k Hz
Resonant Frequency>37K>37K>37K
Resolution0.001 g rms0.0002 g rms0.0001 g rms
Non-Linearity≤1%≤1%≤1%
Transverse Sensitivity≤5%≤5%≤5%
Operating Temp. Range-55 - +120 ℃-55 - +120 ℃-55 - +120 ℃
Sensing Element/GeometryCeramics/ShearCeramics/ShearCeramics/Shear
Output Tyle1/4-28 4-pin1/4-28 4-pin1/4-28 4-pin
Electrical Isolation——————
Compliance Voltage18~30 VDC18~30 VDC18~30 VDC
Current range2~20 mA2~20 mA2~20 mA
Output Bias Voltage8-12V8-12V8-12V
Output Impedance≤100 Ω≤100 Ω≤100 Ω
Case MaterialTitaniumTitaniumTitanium
Case sealingLaser weldingLaser weldingLaser welding
Weight12.2 g12.2 g12.2 g
Size15 ╳ 15 ╳ 10.5mm15 ╳ 15 ╳ 10.5mm 15 ╳ 15 ╳ 10.5mm
Mounting Adhesive/               10-32 screw holeAdhesive/                      10-32 screw holeAdhesive/                           10-32 screw hole
