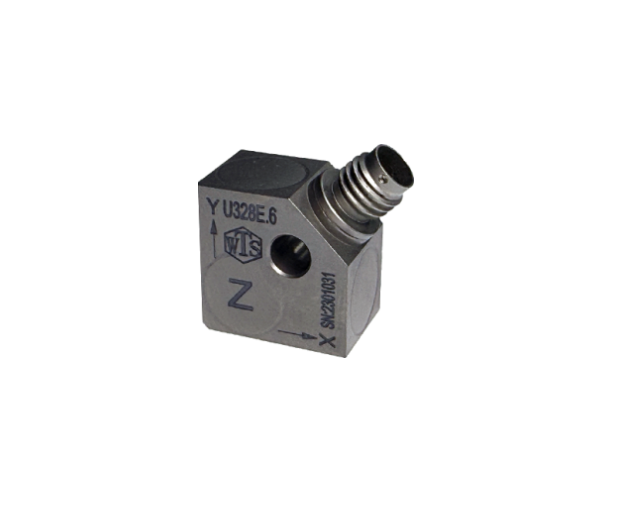

U328E
    Publish time 2023-08-07 11:22
U328E
WTS  ModelU328E U328E.2 U328E.5U328E.6
Sensitivity10 mV/g20 mV/g50 mV/g100 mV/g
Measurement Range±500 g pk±250 g pk±100 g pk±50 g pk
Frequency Range (±5%）1~10k Hz1~10k Hz1~9k Hz1~9k Hz
Frequency Range (±10%)0.5~12k Hz0.5~12k Hz0.5~11k Hz0.5~11k Hz
Resonant Frequency>70K>60K>40K>37K
Resolution0.001 g rms0.0005 g rms0.0002 g rms0.0001 g rms
Non-Linearity≤1%≤1%≤1%≤1%
Transverse Sensitivity≤5%≤5%≤5%≤5%
Operating Temp. Range-55 - +120 ℃-55 - +120 ℃-55 - +120 ℃-55 - +120 ℃
Sensing Element/GeometryCeramics/ShearCeramics/ShearCeramics/ShearCeramics/Shear
Output Tyle1/4-28 4-pin1/4-28 4-pin1/4-28 4-pin1/4-28 4-pin
Electrical Isolation————————
Compliance Voltage18~30 VDC18~30 VDC18~30 VDC18~30 VDC
Current range2~20 mA2~20 mA2~20 mA2~20 mA
Output Bias Voltage8-12V8-12V8-12V8-12V
Output Impedance≤100 Ω≤100 Ω≤100 Ω≤100 Ω
Case MaterialTitaniumTitaniumTitaniumTitanium
Case sealingLaser weldingLaser weldingLaser weldingLaser welding
Weight5.8g6g9g12.2g
Size14 ╳ 14 ╳ 8.5mmm14 ╳ 14 ╳ 8.5mm   15 ╳ 15 ╳ 10mm 16 ╳ 16 ╳ 11mm
Mounting Φ3 Through-holeΦ3 Through-holeΦ4 Through-holeΦ4 Through-hole
