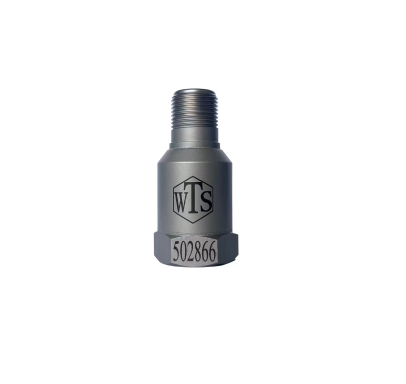

V117E
    Publish time 2014-09-24 10:26
V117E
WTS  ModelV117EV117E.2V117E.5
Sensitivity1000mV/g2000mV/g5000mV/g
Measurement Range±5 g pk±2.5 g pk±1 g pk
Frequency Range (±5%）0.5~1000 Hz0.5~500 Hz0.5~500 Hz
Frequency Range (±10%)0.3~2000 Hz0.3~800 Hz0.3~800 Hz
Resonant Frequency>8KHz>8KHz>8KHz
Resolution0.00001 g rms0.000005 g rms0.000002 g rms
Non-Linearity≤1%≤1%≤1%
Transverse Sensitivity≤5%≤5%≤5%
Operating Temp. Range-55 - +120 ℃-55 - +120 ℃-55 - +120 ℃
Sensing Element/GeometryCeramics/ShearCeramics/ShearCeramics/Shear
Output Tyle2 core MIL-C-50152 core MIL-C-50152 core MIL-C-5015
Electrical IsolationIsolatedIsolatedIsolated
Compliance Voltage18~28 VDC18~28 VDC18~28 VDC
Current range2~10 mA2~10 mA2~10 mA
Output Bias Voltage11 V±1.5 V11 V±1.5 V11 V±1.5 V
Output Impedance≤100 Ω≤100 Ω≤100 Ω
Case MaterialTitaniumTitaniumTitanium
Case sealingLaser weldingLaser weldingLaser welding
Weight98g106g200g
Size25x48mm25x48mm33x58mm
Mounting 1/4-28 screw hole1/4-28 screw hole1/4-28 screw hole
