V311E
    Publish time 2023-08-07 12:29

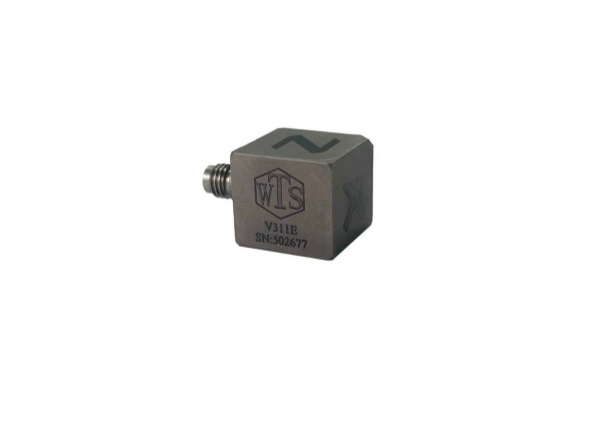

V311E

WTS  ModelV311E.05V311E
Sensitivity500mV/g1000mV/g
Measurement Range±10 g pk±5 g pk
Frequency Range (±5%）0.5~2000 Hz0.5~2000 Hz
Frequency Range (±10%)0.3~3000 Hz0.3~3000 Hz
Resonant Frequency>13KHz>13KHz
Resolution0.00002 g rms0.00001 g rms
Non-Linearity≤1%≤1%
Transverse Sensitivity≤5%≤5%
Operating Temp. Range-50- +120 ℃-50- +120 ℃
Sensing Element/GeometryCeramics/ShearCeramics/Shear
Output Tyle1/4-28 4-pin1/4-28 4-pin
Electrical Isolation————
Compliance Voltage18~28 VDC18~28 VDC
Current range2~10 mA2~10 mA
Output Bias Voltage11 V±1.5 V11 V±1.5 V
Output Impedance≤100 Ω≤100 Ω
Case MaterialTitaniumTitanium
Case sealingLaser weldingLaser welding
Weight31g31g
Size18.5*18.5*16.5mm18.5*18.5*16.5mm
Mounting 10-32 Screw hole10-32 Screw hole
