V112E
    Publish time 2014-09-24 10:26

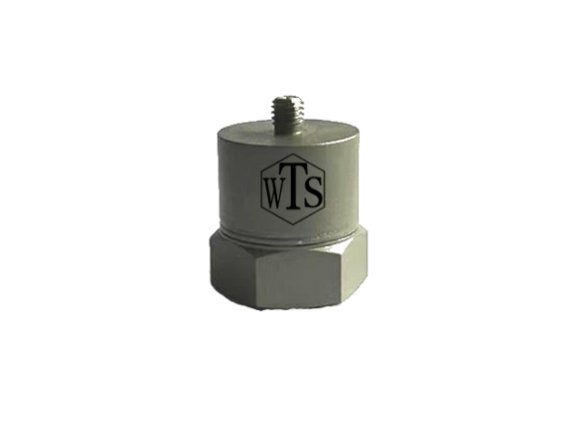

V112E
WTS  ModelV112EV112E.2
Sensitivity1000mV/g2000mV/g
Measurement Range±5 g pk±2.5 g pk
Frequency Range (±5%）0.3~2000 Hz0.3~1500 Hz
Frequency Range (±10%)0.2~3000 Hz0.2~2000 Hz
Resonant Frequency>15K>15K
Resolution0.00001 g rms0.00001 g rms
Non-Linearity≤1%≤1%
Transverse Sensitivity≤5%≤5%
Operating Temp. Range-55 - +120 ℃-55 - +120 ℃
Sensing Element/GeometryCeramics/ShearCeramics/Shear
Output Tyle10-32 Top end10-32 Top end
Electrical IsolationBase IsolationBase Isolation
Compliance Voltage18~30 VDC18~30 VDC
Current range2~10 mA2~10 mA
Output Bias Voltage11 V±1.5 V11 V±1.5 V
Output Impedance≤100 Ω≤100 Ω
Case MaterialTitaniumTitanium
Case sealingLaser weldingLaser welding
Weight50g57.5g
Size21x23mm21x23mm
Mounting 10-32 Screw hole10-32 Screw hole
