MT113E
    Publish time 2023-09-11 17:07

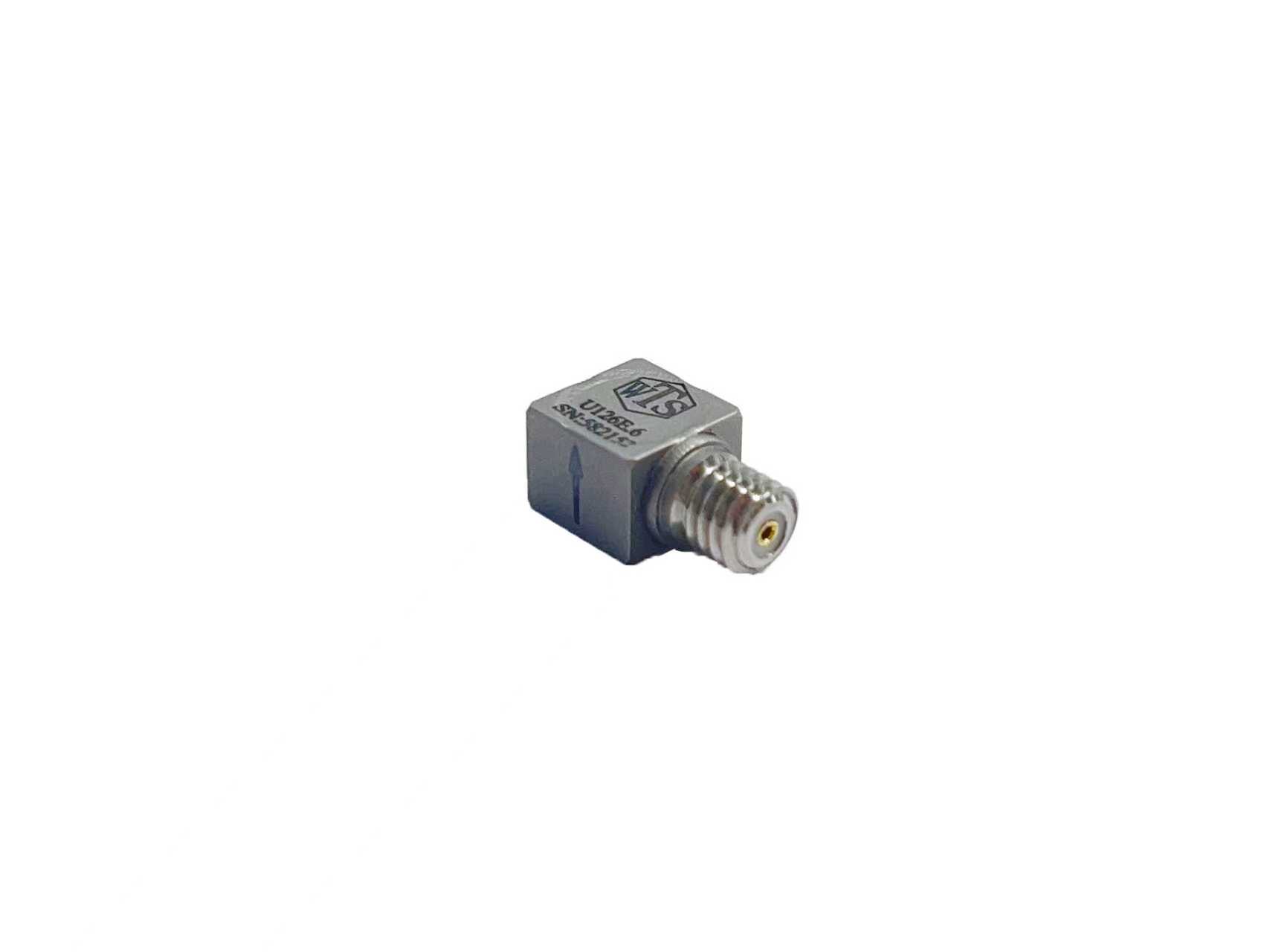

MT113E
WTS  ModelMT113E.5 MT113E.5AMT113E.6
Sensitivity50 mV/g50 mV/g100 mV/g
Measurement Range±100 g pk±100 g pk±50 g pk
Frequency Range (±5%）1~9k Hz1~12k Hz1~10k Hz
Frequency Range (±10%）0.5~11k Hz0.5~14k Hz0.5~12k Hz
Resonant Frequency>30K>40K>38K
Resolution0.0002 g rms0.0002 g rms0.0001 g rms
Non-Linearity≤1%≤1%≤1%
Transverse Sensitivity≤5%≤5%≤5%
Operating Temp. Range-55 - +120 ℃-55 - +120 ℃-55 - +120 ℃
Sensing Element/GeometryCeramics/ShearCeramics/ShearCeramics/Shear
Output Tyle10-32UNF10-32UNF10-32UNF
Electrical Isolation——————
Compliance Voltage18~30 VDC18~30 VDC18~30 VDC
Current range2~20 mA2~20 mA2~20 mA
Output Bias Voltage9-11V8-12V8-12V
Output Impedance≤100 Ω≤100 Ω≤100 Ω
Case MaterialTitaniumTitaniumTitanium
Case sealingLaser weldingLaser weldingLaser welding
Weight6g2.1g2.5g
Size

10x10x8.5 mm

8.5x8.5x6.6 mm

8.5x8.5x6.6 mm

Mounting AdhesiveAdhesiveAdhesive
