MT112E
    Publish time 2023-09-11 17:07

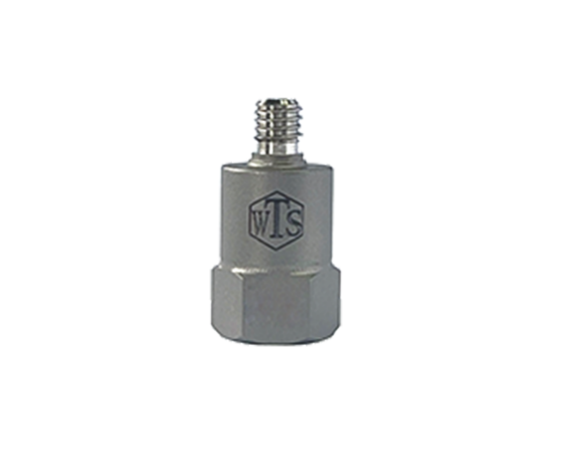

MT112E
WTS  ModelMT112EMT112E.2MT112E.5MT112E.6MT112E.7MT122E.8
Sensitivity10 mV/g20mV/g50 mV/g100 mV/g200 mV/g300 mV/g
Measurement Range±500 g pk±250 g pk±100 g pk±50 g pk±25 g pk±16 g pk
Frequency Range (±5%）1~10k Hz1~10k Hz1~10k Hz1~8k Hz1~7k Hz1~6k Hz
Frequency Range (±10%)0.5~11k Hz0.5~11k Hz0.5~11k Hz0.5~10k Hz0.5~8k Hz0.5~7k Hz
Resonant Frequency>42k Hz>42k Hz>42k Hz>42k Hz>27k Hz>23k Hz
Resolution0.001 g rms0.0005 g rms0.0002 g rms0.0001 g rms0.00005 g rms0.00002 g rms
Non-Linearity≤1%≤1%≤1%≤1%≤1%≤1%
Transverse Sensitivity≤5%≤5%≤5%≤5%≤5%≤5%
Operating Temp. Range-55 - +120 ℃-55 - +120 ℃-55 - +120 ℃-55 - +120 ℃-55 - +120 ℃-55 - +120 ℃
Sensing Element/GeometryCeramic / ShearCeramic / ShearCeramic / ShearCeramic / ShearCeramic / ShearCeramic / Shear
Output Tyle10-32 top10-32 top10-32 top10-32 top10-32 top10-32 top
Electrical grounding isolation————————————
Compliance Voltage18~30 VDC18~30 VDC18~30 VDC18~30 VDC18~30 VDC18~30 VDC
Current range2~20 mA2~20 mA2~20 mA2~20 mA2~20 mA2~20 mA
Output Bias Voltage8-12V8-12V8-12V8-12V8-12V8-12V
Output Impedance≤100 Ω≤100 Ω≤100 Ω≤100 Ω≤100 Ω≤100 Ω
Case Materialtitaniumtitaniumtitaniumtitaniumtitaniumtitanium
Case sealingLaser WeldingLaser WeldingLaser WeldingLaser WeldingLaser WeldingLaser Welding
Weight5.2g5.2g5.8g5.8g14g22g
Size11X22mm11X22mm11X22mm11X22mm13X25mm16X27.5mm
Mounting 10-32 screw hole10-32 screw hole10-32 screw hole10-32 screw hole10-32 screw hole10-32 screw hole
