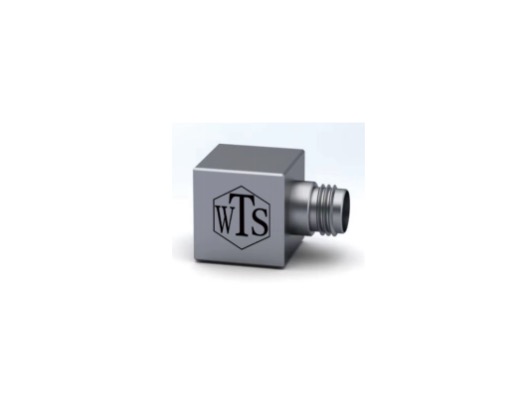

MT325E
Publish time 2023-09-11 17:07
| WTS Model | T325E.4 Data Sheet | T325E.6 Data Sheet |
| Sensitivity | 40 mV/g | 100 mV/g |
| Measurement Range | ±125 g pk | ±50 g pk |
| Frequency Range (±5%） | 1~6k Hz | 1~5k Hz |
| Frequency Range (±10%） | 0.5~8k Hz | 0.5~6k Hz |
| Resonant Frequency | >39K | >22K |
| Resolution | 0.0025 g rms | 0.0001 g rms |
| Non-Linearity | ≤1% | ≤1% |
| Transverse Sensitivity | ≤5% | ≤5% |
| Operating Temp. Range | -40 - +120 ℃ | -40 - +120 ℃ |
| Sensing Element/Geometry | Ceramics/Shear | Ceramics/Shear |
| Output Tyle | 1/4-28UNF | 1/4-28UNF |
| Electrical Isolation | —— | —— |
| Compliance Voltage | 18~30 VDC | 18~30 VDC |
| Current range | 2~20 mA | 2~20 mA |
| Output Bias Voltage | 9-11V | 9-11V |
| Output Impedance | ≤100 Ω | ≤100 Ω |
| Case Material | Aluminum | Titanium |
| Case sealing | Laser welding | Laser welding |
| Weight | 14g/0.49oz | 18g/0.63oz |
| Size | 16 mm Cube 0.62 inch Cube | 16.5mm Cube 0.64 inch Cube |
| Mounting | 10-32 Screw hole | 10-32 Screw hole |
