U122E
    Publish time 2014-09-24 10:43

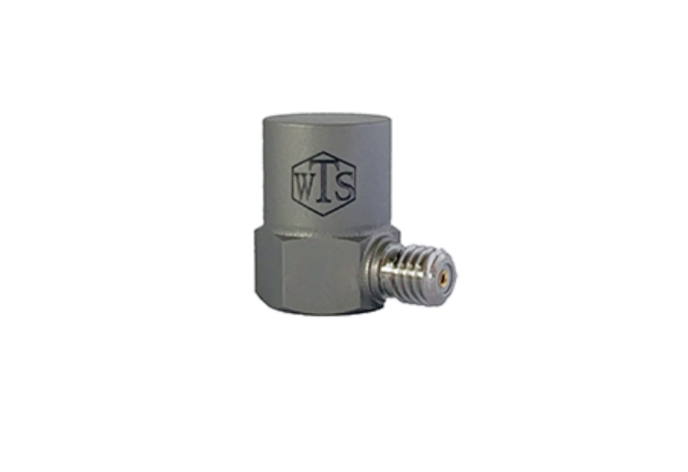

U122E
WTS  Model U122E U122E.2 U122E.5U122E.6 U122E.7 U122E.8 U122E.9
Sensitivity10 mV/g20 mV/g50 mV/g100 mV/g200 mV/g300 mV/g500 mV/g
Measurement Range±500 g pk±250 g pk±100 g pk±50 g pk±25 g pk±16 g pk±10 g pk
Frequency Range (±5%）1~10k Hz1~10k Hz1~10k Hz1~10k Hz1~7k Hz1~6k Hz1~5k Hz
Frequency Range (±10%)0.5~11k Hz0.5~11k Hz0.5~11k Hz0.5~11k Hz0.5~8k Hz0.5~7kHz0.5~7kHz
Resonant Frequency>42K>42K>42K>42K>27K>23K>23K
Resolution0.001 g rms0.0005 g rms0.0002 g rms0.0001 g rms0.00005 g rms0.00002 g rms0.00002 g rms
Non-Linearity≤1%≤1%≤1%≤1%≤1%≤1%≤1%
Transverse Sensitivity≤5%≤5%≤5%≤5%≤5%≤5%≤5%

Operating Temp Range

-55 - +120℃-55 - +120℃-55 - +120℃-55 - +120℃-55 - +120℃-55 - +120 ℃-55 - +120 ℃
Sensing Element/GeometryCeramics/ShearCeramics/ShearCeramics/ShearCeramics/ShearCeramics/ShearCeramics/ShearCeramics/Shear
Output Tyle10-32 side entry10-32 side entry10-32 side entry10-32 side entry10-32 side entry10-32 side entry10-32 side entry
Electrical Isolation——————————————
Compliance Voltage18~30 VDC18~30 VDC18~30 VDC18~30 VDC18~30 VDC18~30 VDC18~30 VDC
Current range2~20 mA2~20 mA2~20 mA2~20 mA2~20 mA2~20 mA2~20 mA
Output Bias Voltage8-12V8-12V8-12V8-12V8-12 V8-12 V8-12 V
Output Impedance≤100 Ω≤100 Ω≤100 Ω≤100 Ω≤100 Ω≤100 Ω≤100 Ω
Case MaterialTitaniumTitaniumTitaniumTitaniumTitaniumTitaniumTitanium
Case sealingLaser weldingLaser weldingLaser weldingLaser weldingLaser weldingLaser weldingLaser welding
Weight6.3g6.3g6.3g6.3g14g22g22g
Size11mm*16mm11mm*16mm11mm*16mm11mm*16mm13mm*19mm16mm*22mm16mm*22mm
Mounting 10-32 Screw hole10-32 Screw hole10-32 Screw hole10-32 Screw hole10-32 Screw hole10-32 Screw hole10-32 Screw hole
