U321E
    Publish time 2023-08-07 11:22

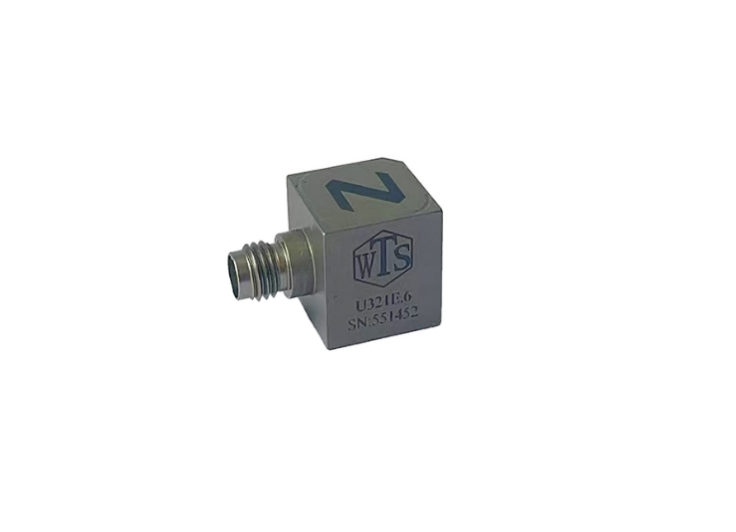

U321E
WTS  ModelU321EU321E.5U321E.6U321E.7U321E.8
Sensitivity10 mV/g50 mV/g100 mV/g200 mV/g300 mV/g
Measurement Range±500 g pk±100 g pk±50 g pk±25 g pk±16 g pk
Frequency Range (±5%）1~8kHz (X: 1~5Khz)1~8kHz (X: 1~5Khz)1~8kHz (X: 1~5Khz)1~5kHz1~5kHz
Frequency Range (±10%)0.5~9kHz (X: 0.5~6Khz)0.5~9kHz (X: 0.5~6Khz)0.5~9kHz (X: 0.5~6Khz)0.5~6kHz 0.5~6kHz
Resonant Frequency>70K>38K>25K>25K>25K
Resolution0.001 g rms0.0002 g rms0.0001 g rms0.00005 g rms0.0001 g rms
Non-Linearity≤1%≤1%≤1%≤1%≤1%
Transverse Sensitivity≤5%≤5%≤5%≤5%≤5%
Operating Temp. Range-55 - +120 ℃-55 - +120 ℃-55 - +120 ℃-55 - +120 ℃-55 - +120 ℃
Sensing Element/GeometryCeramics/ShearCeramics/ShearCeramics/ShearCeramics/ShearCeramics/Shear
Output Tyle1/4-28 4-pin1/4-28 4-pin1/4-28 4-pin1/4-28 4-pin1/4-28 4-pin
Electrical Isolation——————————
Compliance Voltage18~30 VDC18~30 VDC18~30 VDC18~30 VDC18~30 VDC
Current range2~20 mA2~20 mA2~20 mA2~20 mA2~20 mA
Output Bias Voltage8-12V8-12V8-12V8-12V8-12V
Output Impedance≤100 Ω≤100 Ω≤100 Ω≤100 Ω≤100 Ω
Case MaterialTitaniumTitaniumTitaniumTitaniumTitanium
Case sealingLaser weldingLaser weldingLaser weldingLaser weldingLaser welding
Weight11 g11 g11 g14 g14g
Size14mm Cube14mm Cube14mm Cube14mm Cube 14mm Cube
Mounting10-32 Screw hole10-32 Screw hole10-32 Screw hole10-32 Screw hole10-32 Screw hole
