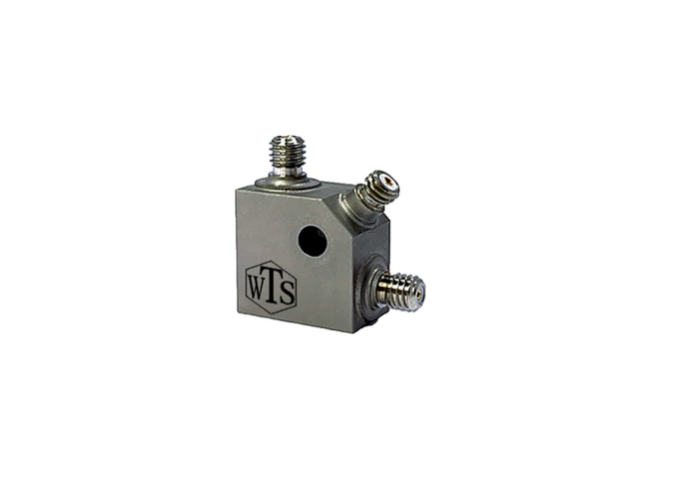

U318E
    Publish time 2023-08-07 11:22
U318E
WTS  ModelU318EU318E.5U318E.6
Sensitivity10 mV/g50 mV/g100mV/g
Measurement Range±500 g pk±100 g pk±50 g pk
Frequency Range (±5%）1~8k Hz1~8k Hz1~5k Hz
Frequency Range (±10%)0.5~10k Hz0.5~10k Hz0.5~6k Hz
Resonant Frequency>25K>25K>25K
Resolution0.001 g rms0.0002g rms0.0001 g rms
Non-Linearity≤1%≤1%≤1%
Transverse Sensitivity≤5%≤5%≤5%
Operating Temp. Range-55 - +120 ℃-55 - +120 ℃-55 - +120 ℃
Sensing Element/GeometryCeramics/ShearCeramics/ShearCeramics/Shear
Output Tyle3╳ 10-32  3╳ 10-32  3╳ 10-32
Electrical Isolation——————
Compliance Voltage18~30 VDC18~30 VDC18~30 VDC
Current range2~20 mA2~20 mA2~20 mA
Output Bias Voltage8-12V8-12V8-12V
Output Impedance≤100 Ω≤100 Ω≤100 Ω
Case MaterialTitaniumTitaniumTitanium
Case sealingLaser weldingLaser weldingLaser welding
Weight14g19g19g
Size18 ╳ 18 ╳10.7mm18 ╳ 18 ╳10.7mm18 ╳ 18 ╳10.7mm
Mounting Φ4.1 Through-holeΦ4.1 Through-holeΦ4.1 Through-hole
