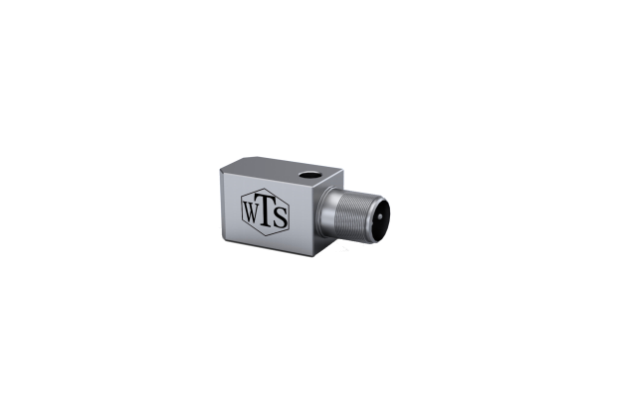

G125E
    Publish time 2014-09-24 10:20
G125E
WTS  ModelG125EG125E.5
Sensitivity100 mV/g500 mV/g
Measurement Range±50 g pk±10 g pk
Frequency Range (±5%）1~8k Hz1~8k Hz
Frequency Range (±10%)0.5~10k Hz0.5~10k Hz
Frequency Range (±3dB)----
Resonant Frequency>25K>25K
Resolution0.0001 g rms0.00005 g rms
Non-Linearity≤1%≤1%
Transverse Sensitivity≤5%≤5%
Operating Temp. Range-50 - +120 ℃-50 - +120 ℃
Sensing Element/GeometryCeramics/ShearCeramics/Shear
Output Tyle2 PIN MIL-C-50152 PIN MIL-C-5015
Electrical IsolationIsolationIsolation
Compliance Voltage18~28 VDC18~28 VDC
Current range2~10 mA2~10 mA
Output Bias Voltage12±2V12±2V
Output Impedance≤100 Ω≤100 Ω
Case MaterialStainless steelStainless steel
Case sealingLaser weldingLaser welding
Weight62g62g
Size45.8*20*25mm45.8*20*25mm
Mounting Φ6.1 Through holeΦ6.1 Through hole
