D128E
    Publish time 2014-09-24 10:21

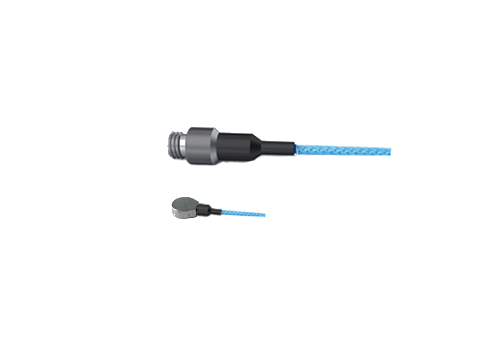

D128E
WTS  ModelD128E.05D128ED128E.2D128E.5
Sensitivity5 mV/g10 mV/g20 mV/g50 mV/g
Measurement Range±1000 g pk±500 g pk±250 g pk±100 g pk
Frequency Range (±5%）1~10k Hz1~10k Hz1~10k Hz1~10k Hz
Frequency Range (±10%)0.5~12k Hz0.5~12k Hz0.5~12k Hz0.5~12k Hz
Resonant Frequency>50k Hz>50k Hz>50k Hz>50k Hz
Resolution0.002 g rms0.002 g rms0.0005 g rms0.0002 g rms
Non-Linearity≤1%≤1%≤1%≤1%
Transverse Sensitivity≤5%≤5%≤5%≤5%
Operating Temp. Range-55 - +200℃-55 - +200℃-55 - +200℃-55 - +200℃
Sensing Element/GeometryCeramics/ShearCeramics/ShearCeramics/ShearCeramics/Shear
Output TyleIntegrated cableIntegrated cableIntegrated cableIntegrated cable
Electrical Isolation————————
Compliance Voltage18~30 VDC18~30 VDC18~30 VDC18~30 VDC
Current range2~20 mA2~20 mA2~20 mA2~20 mA
Output Bias Voltage8-12V8-12V8-12V8-12V
Output Impedance≤100 Ω≤100 Ω≤100 Ω≤100 Ω
Case Materialtitaniumtitaniumtitaniumtitanium
Case sealingLaser WeldingLaser WeldingLaser WeldingLaser Welding
Weight0.35g0.35g0.35g0.35g
Size5.2*5.5*2.6mm         5.2*5.5*2.6mm         5.2*5.5*2.6mm         5.2*5.5*2.6mm
Mounting AdhesiveAdhesiveAdhesiveAdhesive
