W316E
    Publish time 2023-08-07 15:02

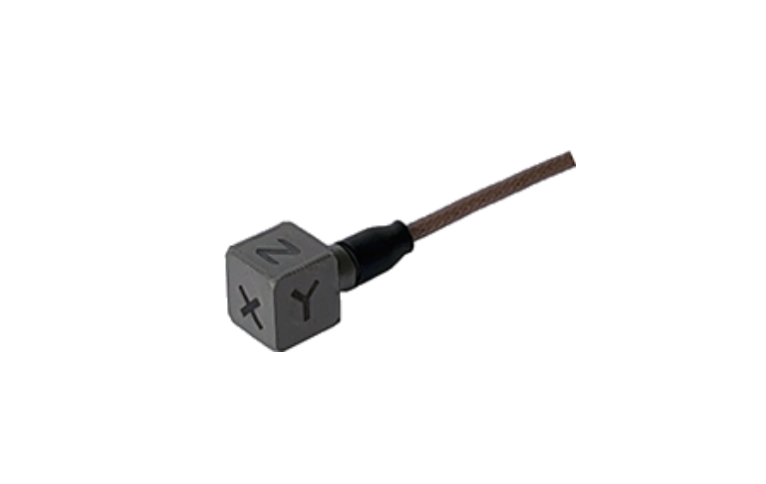

W316E



WTS  ModelW316E.02W316E.05W316EW316E.2W316E.5
Sensitivity2.5 mV/g5 mV/g10 mV/g20 mV/g50 mV/g
Measurement Range±2000 g pk±1000 g pk±500 g pk±250 g pk±100 g pk
Frequency Range (±5%）ZY:2~8k Hz
X:2-7k Hz		ZY:2~8k Hz
X:2-7k Hz		ZY:2~8k Hz
X:2-7k Hz		ZY:2~8k Hz
X:2-7k Hz		ZY:2~8k Hz
X:2-7k Hz
Frequency Range (±10%）ZY:1~10k Hz
X:1-8k Hz		ZY:1~10k Hz
X:1-8k Hz		ZY:1~10k Hz
X:1-8k Hz		ZY:1~10k Hz
X:1-8k Hz		ZY:1~10k Hz
X:1-8k Hz
Resonant Frequency>50K>50K>50K>35K>50K
Resolution0.002 g rms0.002 g rms0.002 g rms0.0005 g rms0.0002 g rms
Non-Linearity≤1%≤1%≤1%≤1%≤1%
Transverse Sensitivity≤5%≤5%≤5%≤5%≤5%
Operating Temp. Range-55 - +120 ℃-55 - +120 ℃-55 - +120 ℃-55 - +120 ℃-55 - +120 ℃
Sensing Element/GeometryCeramics/ShearCeramics/ShearCeramics/ShearCeramics/ShearCeramics/Shear
Output TyleIntegrated cableIntegrated cableIntegrated cable1/4-28, 4-pinIntegrated cable
Electrical Isolation——————————
Compliance Voltage18~30 VDC18~30 VDC18~30 VDC18~30 VDC18~30 VDC
Current range2~20 mA2~20 mA2~20 mA2~20 mA2~20 mA
Output Bias Voltage8-12V8-12V8-12V8-12V8-12V
Output Impedance≤100 Ω≤100 Ω≤100 Ω≤100 Ω≤100 Ω
Case Materialtitaniumtitaniumtitaniumtitaniumtitanium
Case sealingLaser WeldingLaser WeldingLaser WeldingLaser WeldingLaser Welding
Weight1g1g1g1g1g
Size6.5 cube6.5 cube6.5 cube6.5 cube6.5 cube
Mounting AdhesiveAdhesiveAdhesiveAdhesiveAdhesive
