MT311E
    Publish time 2023-09-11 17:07

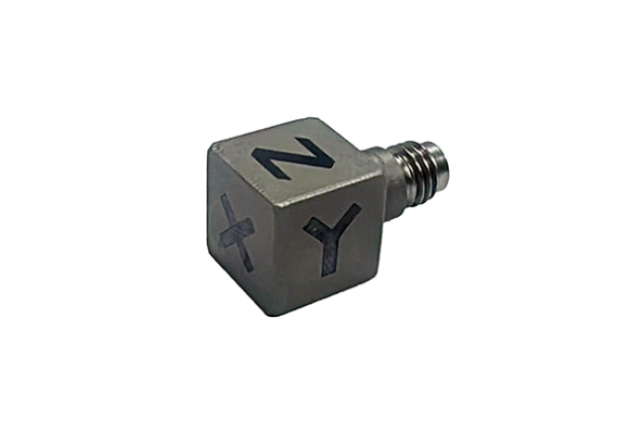

MT311E
WTS  ModelMT311EMT311E.2MT311E.5MT311E.6
Sensitivity10 mV/g20 mV/g50 mV/g100 mV/g
Measurement Range±500 g pk±250 g pk±100 g pk±50 g pk
Frequency Range (±5%）1~9k Hz1~9k Hz1~9k Hz1~9k Hz
Frequency Range (±10%）0.5~10k Hz0.5~10k Hz0.5~10k Hz0.5~10k Hz
Resonant Frequency>45k Hz>35k Hz>35k Hz>35k Hz
Resolution0.001 g rms0.0005 g rms0.0002 g rms0.0001 g rms
Non-Linearity≤1%≤1%≤1%≤1%
Transverse Sensitivity≤5%≤5%≤5%≤5%
Operating Temp. Range-55 - +120 ℃-55 - +120 ℃-55 - +120 ℃-55 - +120 ℃
Sensing Element/GeometryCeramic / ShearCeramic / ShearCeramic / ShearCeramic / Shear
Output Tyle1/4-28 4-pin1/4-28 4-pin1/4-28 4-pin1/4-28 4-pin
Electrical Isolation————————
Compliance Voltage18~30 VDC18~30 VDC18~30 VDC18~30 VDC
Current range2~20 mA2~20 mA2~20 mA2~20 mA
Output Bias Voltage8-12V8-12V8-12V8-12V
Output Impedance≤100 Ω≤100 Ω≤100 Ω≤100 Ω
Case Materialtitaniumtitaniumtitaniumtitanium
Case sealingLaser WeldingLaser WeldingLaser WeldingLaser Welding
Weight4.5g4.5g4.5g4.5g
Size10.2mmCube10.2mmCube10.2mmCube10.2mmCube
Mounting 5-40 screw hole5-40 screw hole5-40 screw hole5-40 screw hole
