U112EM (Submersible up to 50 meters )
    Publish time 2014-09-24 10:43

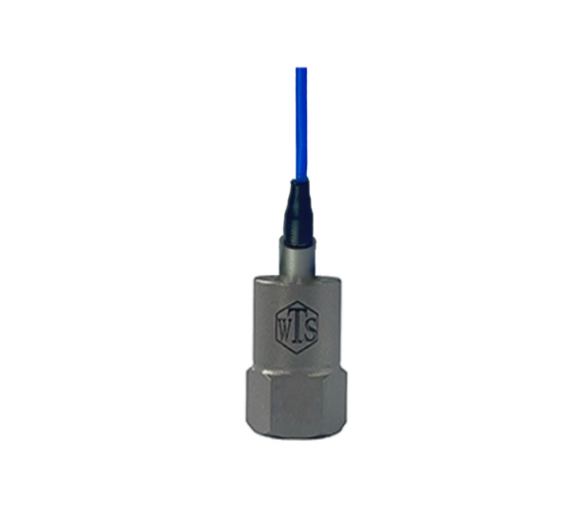

U112EM (Submersible up to 50 meters )
WTS  ModelU112EMU112EM.2U112EM.5U112EM.6U112EM.7U112EM.8
Sensitivity10 mV/g20 mV/g50 mV/g100 mV/g200 mV/g300 mV/g
Measurement Range±500 g pk±250 g pk±100 g pk±50 g pk±25 g pk±16 g pk
Frequency Range (±5%）1~10k Hz1~10k Hz1~10k Hz1~8k Hz1~7k Hz1~6k Hz
Frequency Range (±10%）0.5~11k Hz0.5~11k Hz0.5~11k Hz0.5~10k Hz0.5~8k Hz0.5~7k Hz
Resonant Frequency>42K>42K>42K>42K>27K>23K
Resolution0.001 g rms0.0005 g rms0.0002 g rms0.0001 g rms0.00005 g rms0.00002 g rms
Non-Linearity≤1%≤1%≤1%≤1%≤1%≤1%
Transverse Sensitivity≤5%≤5%≤5%≤5%≤5%≤5%
Operating Temp. Range-55 - +120 ℃-55 - +120 ℃-55 - +120 ℃-55 - +120 ℃-55 - +120 ℃-55 - +120 ℃
Sensing Element/GeometryCeramics/ShearCeramics/ShearCeramics/ShearCeramics/ShearCeramics/ShearCeramics/Shear
Output TyleIntegral cableIntegral cableIntegral cableIntegral cableIntegral cableIntegral cable
Electrical Isolation————————————
Compliance Voltage18~30 VDC18~30 VDC18~30 VDC18~30 VDC18~30 VDC18~30 VDC
Current range2~20 mA2~20 mA2~20 mA2~20 mA2~20 mA2~20 mA
Output Bias Voltage8-12V8-12V8-12V8-12V8-12V8-12V
Output Impedance≤100 Ω≤100 Ω≤100 Ω≤100 Ω≤100 Ω≤100 Ω
Case MaterialTitaniumTitaniumTitaniumTitaniumTitaniumTitanium
Case sealingLaser weldingLaser weldingLaser weldingLaser weldingLaser weldingLaser welding
Weight5.2 g5.2 g5.8g5.8g14 g22g
Size11x 22 mm11x 22 mm11x 22 mm11x 22 mm13x 25 mm16x 27.5 mm
Mounting 10-32 screw hole10-32 screw hole10-32 screw hole10-32 screw hole10-32 screw hole10-32 screw hole
