X311EM (Submersible up to 50 meters )
    Publish time 2014-09-24 10:43

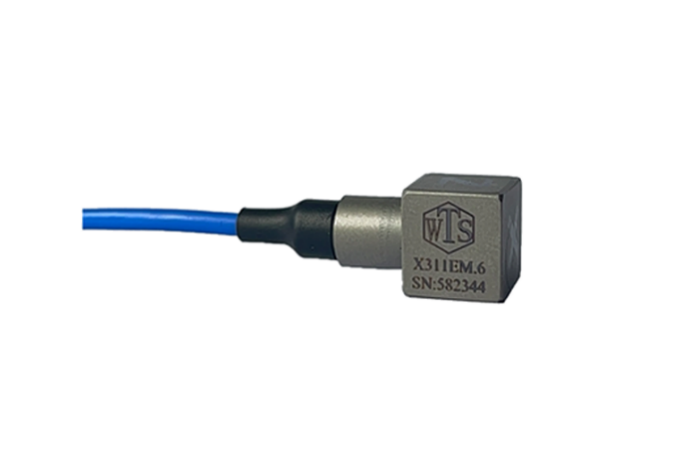

X311EM (Submersible up to 50 meters )
WTS  ModelX311EMX311EM.2X311EM.5X311EM.6
Sensitivity10mV/g20mV/g50mV/g100mV/g
Measurement Range±500g±250g±100g±50g
Frequency Range (±5%）1~7kHz1~7kHz1~7kHz1~5kHz
Frequency Range (±10%）0.5~8kHz0.5~8kHz0.5~8kHz0.5~6kHz
Resonant Frequency＞45k＞45k＞45k＞45k
Resolution0.001 g rms0.0005 g rms0.0002 g rms0.0001 g rms
Non-Linearity≤1%≤1%≤1%≤1%
Transverse Sensitivity≤5%≤5%≤5%≤5%
Operating Temp. Range-55~120℃-55~120℃-55~120℃-55~120℃
Sensing Element/GeometryCeramics/ShearCeramics/ShearCeramics/ShearCeramics/Shear
Output TyleIntegral cableIntegral cableIntegral cableIntegral cable
Electrical Isolation----
Compliance Voltage18~30VDC18~30VDC18~30VDC18~30VDC
Current range2~20mA2~20mA2~20mA2~20mA
Output Bias Voltage8~12V8~12V8~12V8~12V
Output Impedance≤100Ω≤100Ω≤100Ω≤100Ω
Case MaterialTitaniumTitaniumTitaniumTitanium
Case sealingLaser weldingLaser weldingLaser weldingLaser welding
Weight6.5g6.5g6.5g8.4g
Size11.5mm cube11.5mm cube11.5mm cube11.5mm cube
Mounting 5-40 Screw hole5-40 Screw hole5-40 Screw hole5-40 Screw hole
